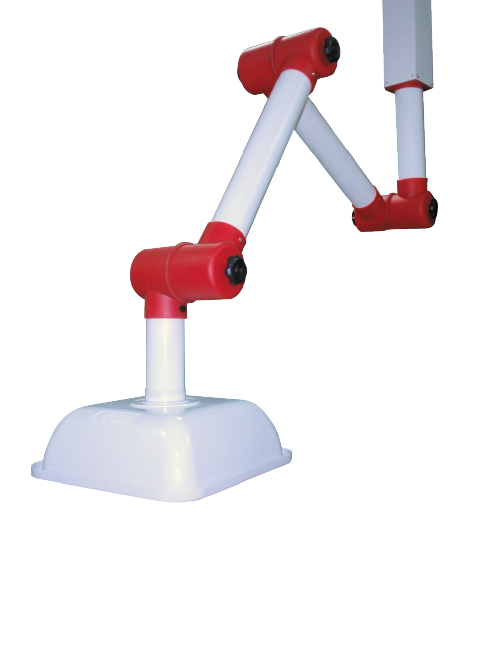

Ceiling Mounting 3 inch without ceiling column EAR-3RA

Ceiling Mounting 3 inch without ceiling column
EAR-3RA

Specification

A：3-joint-extraction arm
● Pipe Diameter: 75mm
● Pipe material：PVC
● Reducer material：PP
● Feature :
There are three valves upon 3-joint-extraction arm, each one
can easily adjusted the arm to the suitable position where harmful
substances are present in dangerous concentrations.
Operation and maintenance of the arm is easy. It can be adjusted
to a new position and dismantled for cleaning without the need
of tools. Top of the pipe can be revolvable freely.

B：Hood
● Dimension：390mm dia.
● Hood material：Polypropylene(PP)
● Reducer material：PP
● Features：Easy to clean and chemically resistant well.

C：Ceiling Column
● Dimension：100Wx100Dx750Hmm
100Wx100Dx1000Hmm
100Wx100Dx1250Hmm
● Material：Iron plate with white powder coated
● Features：Connection 3-joint-extraction arm and ceiling or other column
closely. Easy to be disassembled. There is a coupling flange
(ψ95mm) can be connected to other exhaust pipe or filter system.
